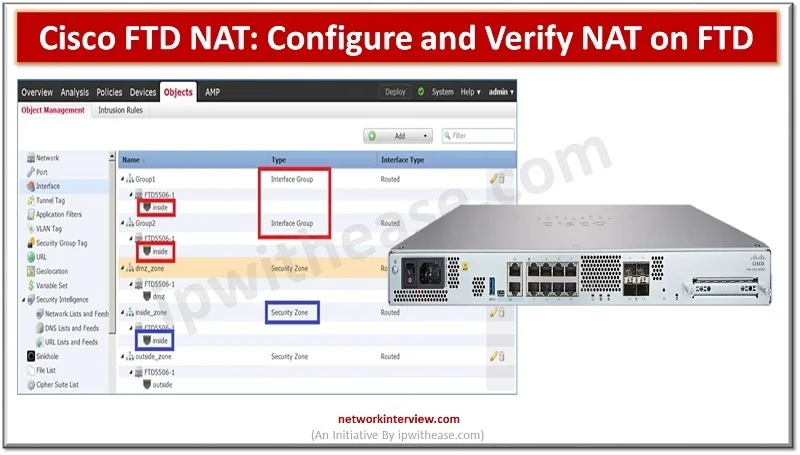

Cisco FTD NAT: Configure and Verify NAT on FTD
Cisco FTD NAT: Introduction
An IP address is the basis of every communication over the network and Internet. Each computer device is assigned an IP address within an IP network which identifies the host as a unique entity. But due to shortage of IPv4 addresses most of the IP addresses are private and not routable anywhere outside of private enterprise networks. NAT or network address translation enables private IP addresses to connect to the Internet. NAT converges on public addresses because it can be configured to advertise at a minimum only one public IP address for the entire network to the external world.
In today’s blog we will cover in detail about how NAT can be configured on FirePower Threat Defence.
Examples of types of NAT can be configured on FTD
Cisco NAT is one of the most basic functions for any device like a firewall. With NAT it is possible to access the Internet with a private IP address or give access from the Internet to the services with a private IP address. Cisco FTD NAT can be configured in many ways as under:
- With Source NAT for internal users having private IP address to connect to Internet
- With Destination NAT for users on Internet, connect to organization servers with private IP address
- With Static NAT and dynamic NAT having one to one mapping between real address and translated address or many real addresses translated to one or few addresses
- With Policy NAT – match traffic based on specific source and destination address and port number
- With identity NAT exclude some traffic to translate over VPN tunnels
Cisco FTD NAT Configuration
We will use below table example to demonstrate Cisco FTD NAT configuration
|Static NAT||126.96.36.199 à 188.8.131.52 (bi-directional)|
|Dynamic NAT||184.108.40.206-5/24 à 220.127.116.11-5|
|PAT||18.104.22.168-11/24 à outgoing interface IP (22.214.171.124)|
|Static NAT||126.96.36.199 à 188.8.131.52 (bi-directional)|
|PAT||184.108.40.206:23 à 220.127.116.11
18.104.22.168:22 à 22.214.171.124
|Policy NAT||src: 126.96.36.199/dst: 188.8.131.52àtranslated src: 184.108.40.206|
|Identity NAT||src: 220.127.116.11/16/ dst: 18.104.22.168/16 à no translation|
Source NAT: Static NAT
We configure to translate IP address 22.214.171.124 in the inside zone to 126.96.36.199. Static NAT is bi-directional by default and if both static and dynamic NATs are configured, static NAT has higher priority to take precedence.
To implement NAT for the first time, create a policy and choose an FTD device on which we will configure NAT rules.
Devices -> NAT -> New Policy -> Threat Defence NAT -> New policy
To implement static NAT create and Auto NAT rule and mention ‘Source interface’ and ‘destination interface’ IP address
Source Interface – real address ‘188.8.131.52’
Destination interface – translated address ‘184.108.40.206’
To test this configuration, send ping traffic from system behind FTD with address 220.127.116.11 to address 18.104.22.168 where source address will be translated to 22.214.171.124 when it is forwarded by FTD.
Source NAT: Dynamic NAT
It is almost the same as static NAT except the translated address is chosen from a pool. Let’s create two lists one with a real IP address range from 126.96.36.199-5 and 188.8.131.52-5 range for translated address.
When you send a ping from IP address 184.108.40.206 it will be translated to 220.127.116.11 and when you ping from 18.104.22.168 then it will be translated to 22.214.171.124.
Source NAT: PAT NAT
In PAT many addresses can be mapped to a single or few addresses. We will configure IP address range 190.162. 10.5-11 to a single FTD outside IP interface address 126.96.36.199. Enable PAT pool and Auto NAT rule.
To verify ping 188.8.131.52 and 184.108.40.206 will be translated to 220.127.116.11 which is IP address of FTD outside interface
Destination NAT: Static NAT
In an earlier created static rule we mapped IP address 18.104.22.168 inside zone to IP address 22.214.171.124 in outside zone since static NAT is bi-directional this mapping will work vice versa also. so, when you access 126.96.36.199 from outside zone you will be connected to 188.8.131.52
Destination NAT: PAT NAT
When you access 184.108.40.206 and port 23 from the outside zone you will be connected to a server with IP address 220.127.116.11 with the same port number inside the zone.
When you access 18.104.22.168 and port 22 you will be connected to a server with IP address 22.214.171.124 with the same port number inside the zone.
Policy NAT is implemented by manual NAT to have more flexibility to match and translate or just not translate any source or destination IP address. There are two options in policy NAT – ‘Before Auto NAT’ and ‘After Auto NAT’.
With ‘Before Auto NAT’ manual rules takes precedence in processing and with ‘After Auto NAT’ there priority is lesser and will be processed if traffic do not match Auto NAT rules.
The src IP address 126.96.36.199 will only be translated to 188.8.131.52 only when the destination of the traffic is 184.108.40.206 else it will match static rule which translate source IP address 220.127.116.11 to IP address 18.104.22.168.
In this NAT there is an option to exclude the traffic. Usually it is implemented over VPN connections since traffic over VPN does not require translation; moreover VPN and NAT are also not compatible technologies.
Traffic between 22.214.171.124/16 in the inside zone and 126.96.36.199/16 in the outside zone are exempted from NAT because they are internal subnets.
Cisco FTD NAT Implementation
Cisco FTD NAT is implemented in two different ways. Source and destination Network Address Translation (NAT) are implemented using Automated NAT. Policy NAT and Identity NAT, on the other hand, are implemented by means of Manual NAT.
As we know, source NAT & destination NAT are implemented by Auto NAT. Both source and destination NAT can also be implemented using Manual NAT, however, the opposite is not possible. Complicated NAT scenarios cannot be implemented when using Auto NAT. When using Auto-NAT, the translation is associated to an object that has either the actual source addresses or the destination addresses, not both together. Auto NAT is not compatible with object group.
With Manual NAT, you have the option to modify or keep the source and destination address unchanged together. Moreover, you can opt for either an individual object or an object group for both the real address and the translated address. Therefore, it is much more flexible.
